ALLOSUN 12V 24V Car Battery Tester 100-2000 CCA Battery Load Tester Automotive Cranking Charging System Tester Digital Battery

Brand allsun Power Source Battery Powered Style Digital Item dimensions L x W x H 4.92 x 3.03 x 0.91 inches Manufacturer ALLOSUN [MULTIFUNCTIONAL CAR BATTERY TESTER]: The test has 3 main funtions: automotive storage battery tester, automotive cranking systerm tester and automotive charging systerm tester. [BATTERY ANALYZER]: The measuring range of 12V batteries is 9-15V, the measuring range of 24V batteries is 9-30V; it results based on CCA, DIN, EN, IEC and JIS Standards. [MULTIPLE BATTERY TYPES TEST] The automotive load tester can test all automotive cranking lead acid batteries, including ordinary lead acid batteries, AGM flat plate batteries, AGM spiral batteries, Gel batteries, and etc. [HUMANIZED DESIGN]: The digital battery tester can directly detect bad cell battery, and also can test low battery, no need to fully change battery before test. [PROTECTION DESIGN]: The charging systerm tester has reverse polarity connection protection. Reverse polarity connection will not damage it or affect the vehicle and battery under test.

670.00 MAD

800.00 MAD

وفر 130.00 MAD

تفاصيل

المرجع B092QSF2G7

البيانات

ASIN ‏: ‎ B092QSF2G7
Product Dimensions ‏: ‎ 4.92 x 3.03 x 0.91 inches; 11 ounces
Manufacturer ‏: ‎ ALLOSUN

مراجع محددة

وصف

Product Description

INTRODUCTION

This battery tester is a handheld , portable test tool designed to test 12V / 24V automotive lead-acid storage batteries and 12V / 24V automotive starting systems and charging systems. It can easily, quickly and accurately test the actual cold cranking amps capability of automotive battery, health state ofautomotive battery, automotive cranking system and charging system.

It can be used by maintenance personnel to troubleshoot automotive battery problem and automotive starting /charging system problem can be used in automobile factories, automotive maintenance and repaworkshops , automotive battery factories , educational organizations , and etc , or used by automotive battery distributors.

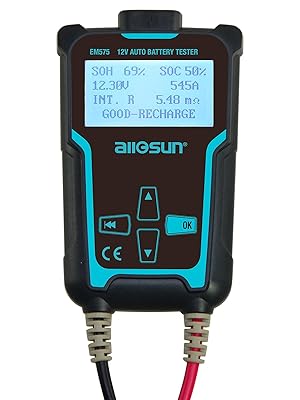

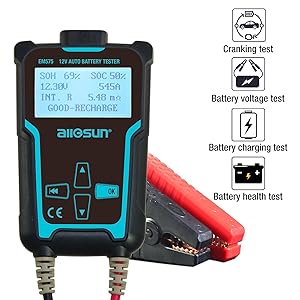

ALLOSUN 12V 24V Car Battery Tester

BATTERY HEALTH

CRANKING TEST

CHARGING TEST

APPLICATION SCENES


Automotive Storage Battery Test It is mainly intended to analyze the battery health status, calculate the actual cold cranking capability of the battery and judge the aging degree of the battery so as to provide reliable test data for battery maintenance and service. The tester notifies user to replace battery when the battery can not be used.	Cranking System Test It is mainly to test and analyze the starting motor. Through testing the actual required cranking current and cranking voltage of the starting motor, the tester can find out whether the starting motor works well. There areseveral reasons why a starting motor works abnormally, such as lubricating system malfunction that causes increase of the starting loaded torque, the starting motor rotor friction that causes the increase of friction of the starting motor. and etc.	Charging System Test It is to check and analyze the charging system and find out whether the output voltage of the alternator is normal. If the output voltage/current of the alternator is abnormal, the vehicle battery will be overcharged or undercharged, and thus the battery will be quickly damaged and the useful life of vehicle electrical appliances or loads will be greatly shortened.

ALLOSUN is one of the most excellent brand in Eastern Technology Group.

Based on ISO9001 International Quality System, most of our products are exported to Europe with approvals of GS, CE, RoHs, etc and USA with approvals of UL, ETL, etc.
Eastern Technology Group invests in quality certification constantly to make the products more competitive.

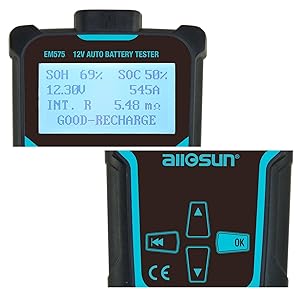

ALLOSUN Digital Battery Analyzer

The selectable standards are described as follows:

CCA: Cold Cranking Amps, specified by SAE&BCL, most frequently used value for cranking battery at 0°CF(18°C)

JIS: Japan Industrial Standard, displayed on the battery as combination of the numbers and letters, e.g.55D23,80D26

DIN: German Auto Industry Committee Standard

IEC: Internal Electro Technical Commission Standard

EN: European Automobile Industry Association Standard

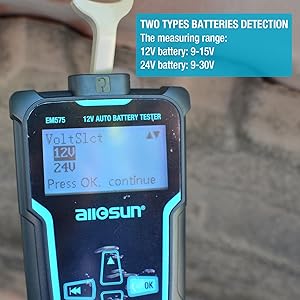

Voltage Measuring Range : 9V to 30V DC
Battery Internal Resistance Measuring Range : 2-200mΩ
Operating Temperature : 0°C to 40°C
Storage Temperature : -20 °C to 60°C
Dimention: 4.92”(W)*3.03”(D)*0.91”(H)
Weight : About 9.1 ounces

PRODUCT FEATURES

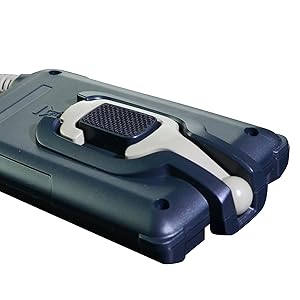

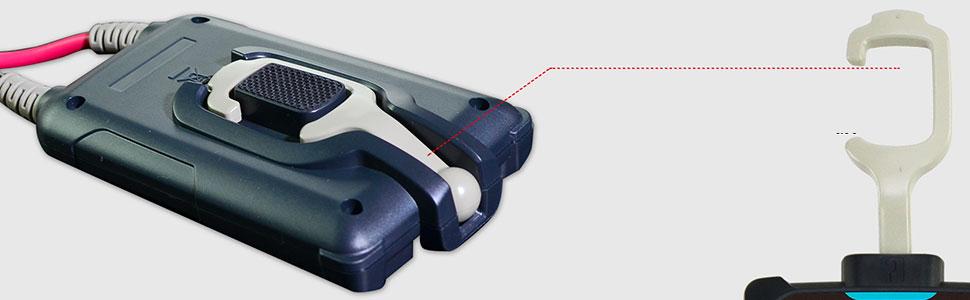

Humanized Design Hook: convenient to measurement operation Groove: to reduce the space occpied by the hook Magnetic: can be attached to metal surface	Protection Design The charging systerm tester has reverse polarity connection protection. Reverse polarity connection will not damage it or affect the vehicle and battery under test.	Selectable Languages Customer can customize languages forthe products which he or she wants to order. The customizable languages include simplified Chinese, English, Japanese, Russian, Spanish, Germanand etc.
